Live Activities

Nalu.Maui.LiveActivities shows your app's live, glanceable state on the system surfaces of both platforms from one C# API:

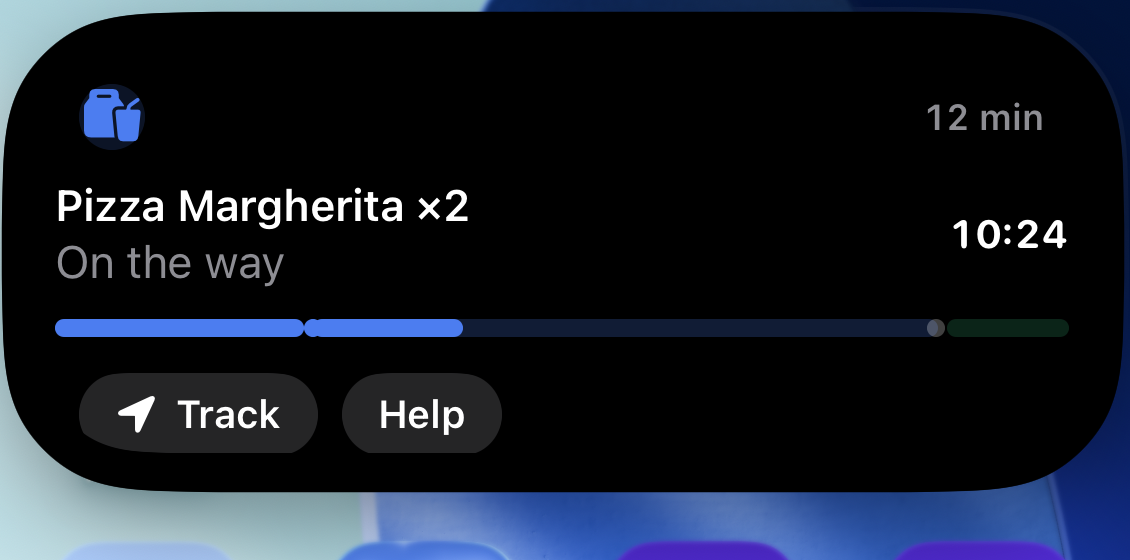

• iOS: a real ActivityKit Live Activity — Lock Screen banner plus the Dynamic Island (compact chip, expanded card) — rendered by a widget extension the package builds and embeds automatically (you write no Swift and touch no Xcode).

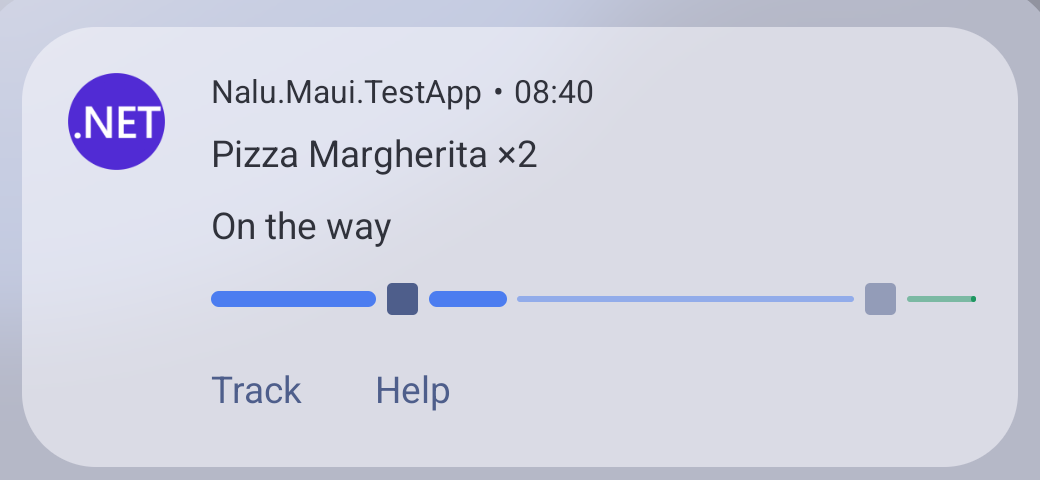

• Android 16+: a Live Update — the promoted ongoing notification with the status-bar chip and the floating card. Android 8–15 degrades gracefully to a plain ongoing notification with a classic progress bar and chronometer.

The design principle is a semantic content model: you describe what the activity says — title, chip, progress, a ticking timer, actions — and each platform renders it natively in its own visual language. Both platforms end up with the same information in the same roles, because the model is the intersection of what they can render. One content, two systems:

var activity = await liveActivities.StartAsync("delivery", new LiveActivityContent
{
    Title = "Pizza on the way",
    Subtitle = "Preparing your order",
    ChipText = "10%",
    AccentColor = "#4C7DF0",
    Progress = new LiveActivityProgress { Value = 0.1 },
    Timer = LiveActivityTimer.CountDown(order.Eta),
});

await activity.UpdateAsync(c =>
{
    c.Subtitle = "On the way";
    c.ChipText = "60%";
    c.Progress!.Value = 0.6;
});

await activity.EndAsync(c =>
{
    c.Title = "Delivered";
    c.Subtitle = "Enjoy!";
    c.Progress = null;
    c.Timer = null;
});

Setup

builder.UseNaluLiveActivities(live => live
    .AddKind("delivery", "Order tracking")   // Android notification channel name
);

Resolve ILiveActivityManager from DI wherever you need it.

On iOS, declare Live Activity support in Platforms/iOS/Info.plist:

<key>NSSupportsLiveActivities</key>
<true/>

That is the whole setup on iOS: with the key declared, the NuGet package builds + embeds a generic WidgetKit extension rendering the content model — Lock Screen, Dynamic Island, everything. Forget the key and the build fails with NALU001 telling you exactly what to add — the package validates the compiled app manifest so the mistake can never reach ActivityKit's cryptic runtime error.

On Android there is nothing to add to your manifest: the package declares

• android.permission.POST_NOTIFICATIONS (the runtime-prompted notification permission), and
• android.permission.POST_PROMOTED_NOTIFICATIONS (the install-time grant that allows Live Update promotion)

via assembly-level [UsesPermission] attributes, and Android's standard manifest merge carries both into your app — the same first-class mechanism every Android library uses (verify with aapt2 dump on the built APK if in doubt). Your only job is triggering the runtime prompt:

var allowed = await liveActivities.RequestPermissionAsync();

Note

On Android this requests POST_NOTIFICATIONS (Android 13+). On iOS there is no runtime prompt — the user controls Live Activities per app in Settings, and the call simply reflects that switch.

Support levels

switch (liveActivities.Support)
{
    case LiveActivitySupport.Full:        // iOS 16.2+ · Android 16 QPR1+ (chip + floating card)
    case LiveActivitySupport.Degraded:    // Android 8 – 16 base: plain ongoing notification, no chip
    case LiveActivitySupport.Unavailable: // iOS < 16.2, Mac Catalyst, Windows, or user-disabled
}

Note

The Live Update chip needs Android 16 QPR1 (API 36.1) — the promotion API does not exist on base Android 16, so devices that have not received QPR1 yet (common on OEM schedules) report Degraded and show the plain ongoing notification. The chip's exact look also follows the vendor's skin. Users can additionally veto promotion per app (notification settings → "Live updates" / promoted notifications).

Calls are never platform-branched in your code: on Unavailable surfaces StartAsync returns an inert handle and every call is a no-op, so the same code path runs everywhere. Set DisableAndroidFallback = true in the options if the chip is essential to your feature and a chip-less notification would mislead.

The API shape

The handle is write-mostly and every mutation goes through a patch lambda:

public interface ILiveActivity
{
    string Id { get; }
    string Kind { get; }
    LiveActivityState State { get; }          // Active, Stale, Ended, Dismissed
    ILiveActivityContent Content { get; }     // read-only view of the last applied snapshot

    event EventHandler? Dismissed;            // the user removed it from screen

    Task UpdateAsync(Action<LiveActivityContent> patch, LiveActivityAlert? alert = null);
    Task EndAsync(Action<LiveActivityContent>? finalPatch = null,
                  LiveActivityDismissal dismissal = LiveActivityDismissal.Default);
}

Why lambdas instead of passing content objects around:

• The library deep-clones the current snapshot into a draft, runs your patch on it under the handle's lock, and applies the result. Reading and writing happen on the freshest state, concurrent updates serialize cleanly, and the patch must be synchronous.
• A patch that produces identical content is skipped entirely — both OSes budget live-activity updates, so no-op suppression is built in.
• Content is the read-only view of the last applied snapshot (its main use is reconciliation); your own model stays the source of truth.

Updates are silent by default. Pass an alert to draw attention (iOS Live Activity alert, Android re-notify):

await activity.UpdateAsync(
    c => c.Subtitle = "Driver is at the door",
    new LiveActivityAlert("Driver arrived", "Meet them at the door"));

Ending mirrors iOS semantics on both platforms: the default dismissal keeps the final content visible for a while (Android converts it to a regular swipeable notification), while LiveActivityDismissal.Immediate removes it instantly.

The content model, mapped

Property	Android (Live Update)	iOS (widget)
Title / Subtitle	notification title / text	card headline / secondary line
SubtitleOverflow	subtitle once a countdown runs over (from the next post)	subtitle once a countdown runs over (system-side with StaleAt) — see timers
ChipText	status-bar chip text (setShortCriticalText)	Dynamic Island compact pill; expanded-card corner caption
ChipIcon	— (chip shows the small icon)	identity glyph (SF Symbol name) in card + minimal island
AccentColor	small-icon tint + progress bar color	progress track + identity glyph tint — nothing else, see below
ImageName	large icon (drawable name)	— (reserved)
Progress	ProgressStyle bar: segments, points, tracker icon	segmented capsule track with milestone dots
Timer	native chronometer (header)	native ticking text (Text(timerInterval:))
DeepLink	tap intent	widgetURL
Actions	notification action buttons	capsule Link buttons
StaleAt	(marks handle Stale on rehydration)	ActivityKit staleDate — also the zero-crossing trigger
Custom	ignored	forwarded verbatim to custom widget UIs

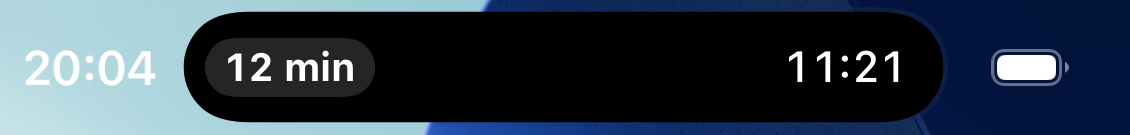

Keep ChipText under ~7 characters ("12 min", "3–2", "60%") — it lives in the tiny always-visible surface on both platforms:

Progress with steps

Yes — progress is not just a fraction. The model adopts Android 16's ProgressStyle shape, and the iOS widget renders the same structure:

• Segments — weighted, individually colorable stretches of the bar (phases of a journey: preparing · driving · delivering);
• Points — milestone markers at positions along the bar, filled once passed;
• TrackerIcon — an icon travelling with the progress (Android only);
• Indeterminate — a waiting bar while the real extent is unknown.

See the delivery example for the full pattern.

Colors are deliberately constrained

Android's Live Update is a system template: text, chip and card background are always system-colored (and adapt to dark/light on their own); the app only colors the progress bar and tints its identity icon. The iOS widget enforces the same contract — AccentColor applies to the progress track and the identity glyph, nothing else — so the customization surface is identical on both platforms and both inherit dark/light adaptivity from the system. If you need more than that on iOS, bring your own widget UI.

The user can always take it away

Neither platform lets you pin a live activity on screen, and this is deliberate. Android 14 changed setOngoing(true) so ongoing notifications became dismissable for all apps, regardless of targetSdkVersion — the only carve-outs are CallStyle, media, and enterprise device-policy notifications, none of which a live activity qualifies for. Android 16's Live Updates kept that: Google's guidance is explicitly don't repost what the user dismissed, because reposting is what makes people revoke the app's posting permission outright. iOS is the same story — a Live Activity can be cleared from the Lock Screen.

Nalu absorbs this for you. When the user removes it:

• State becomes LiveActivityState.Dismissed and the Dismissed event fires (on the main thread, on both platforms).
• Further UpdateAsync calls become silent no-ops — they do not throw the way an ended handle does, so a progress loop can keep running untouched. Content still advances, so the snapshot stays truthful.
• EndAsync seals the handle to Ended without touching the platform — important because the default dismissal posts the final content, which would drag the notification the user just swiped straight back.

You only need the event if something should stop when the activity goes away:

activity.Dismissed += (_, _) => _progressTimer.Stop();

Under the hood this is a delete intent on Android and an ActivityKit state observer on iOS; neither reaches your code. Note the asymmetry it papers over: Android would genuinely resurrect the notification on the next notify(), while ActivityKit merely ignores updates — without this, the same app code would behave differently per platform.

…but not forever, and not everywhere

Two iOS limits are worth knowing before you design around a Live Activity, because neither is something the content model can influence.

A Live Activity lives about 8 hours. After that iOS ends it on its own, removing it from the Dynamic Island immediately and from the Lock Screen a few hours later. A timer longer than that will always outlive its activity, and an activity left running overnight is simply gone by morning — not broken, ended. If your session can outlast the limit, end it and start a fresh one rather than expecting a single activity to span a day.

Note this is about the activity's own AGE, not the timer's length: ActivityKit accepts a countdown of any duration, including one whose end is already in the past (verified on device from 48 hours ahead to 22 hours elapsed), and the widget renders an elapsed range correctly.

A stale date in the past is a different matter, and it makes the activity invisible. If StaleAt has already passed, ActivityKit creates the activity directly in ActivityState.stale, and a stale activity is never presented at all — SpringBoard does not put it on the Lock Screen, so nothing appears and nothing renders. Nalu therefore drops a stale date that is already in the past rather than forwarding it, because there is no upside: it cannot even produce a stale treatment, since there is nothing on screen to treat.

This matters because the appointment pattern sets StaleAt to the countdown end — perfectly correct while that end is ahead, and a past instant the moment it goes by. Without the guard, restarting or updating an activity for a session that finished half an hour ago would silently show nothing.

The Dynamic Island needs an iPhone 14 Pro or later. On a notch device — iPhone 13 and earlier — Live Activities are fully supported but only ever appear on the Lock Screen and as alert banners; the compact and minimal presentations have nowhere to draw. If you are testing and "nothing shows up near the notch", check the device before the code. An iPhone 15/16 Pro simulator renders all three presentations.

Tip

A foreground app never shows its own Live Activity. Background the app (or lock the device) to see it at all — a start call that returned successfully is not evidence that anything was presented.

Activities outlive your app

This is a feature, not a leak: a delivery keeps its Live Activity when the app dies, on both platforms. The consequence: reconcile on startup. ILiveActivityManager.Activities rehydrates surviving activities (from ActivityKit on iOS, from the notification's own extras on Android) — adopt yours instead of starting a duplicate next to it:

var existing = liveActivities.Activities
    .LastOrDefault(a => a.Kind == "delivery"
                        && a.State is LiveActivityState.Active or LiveActivityState.Stale);

if (existing is not null)
{
    _activity = existing;                                 // continue updating it
    _progress = existing.Content.Progress?.Value ?? 0;    // restore what you need
}

An adopted handle is fully functional — UpdateAsync continues the same notification / activity seamlessly.

Custom iOS UI

The bundled widget is a deliberately clean default. When your activity deserves bespoke SwiftUI, copy the package's widget project and point the build at it:

<PropertyGroup>
  <NaluLiveActivitiesWidgetProject>$(MSBuildProjectDirectory)/MyWidget/MyWidget.xcodeproj</NaluLiveActivitiesWidgetProject>
</PropertyGroup>

Rules of the road: keep the NaluLiveActivityAttributes struct exactly as shipped (ActivityKit matches activities to widgets by that type), decode the same JSON payload, and switch layouts on kind. The Custom dictionary travels untouched for anything your UI needs beyond the standard model. Other knobs: NaluLiveActivitiesWidget=false disables the automatic widget entirely; NaluLiveActivitiesWidgetBundleSuffix and ...WidgetDisplayName tune identity.

Important

Device and App Store builds need the usual per-bundle-id provisioning for the widget extension ($(ApplicationId).widget by default) on the Apple developer portal — that is an Apple requirement for any app extension, not something the package can automate.

Actions

Actions are deep links in v1 — a label, an optional icon, and a URL your app handles:

Actions =
[
    new LiveActivityAction { Id = "track", Label = "Track", Icon = "location.fill", DeepLink = "myapp://track" },
    new LiveActivityAction { Id = "help",  Label = "Help",  DeepLink = "myapp://help" },
]

Both platforms render them as buttons; tapping opens the app at the link. There are no in-process callbacks yet: an action with an Id but no DeepLink is valid to declare today but not rendered — it is reserved for the upcoming direct-callback support, which will report taps back through that Id without opening the app.

Warning

Every deep link — the content-level DeepLink and each action's — needs its scheme registered by your app, and an unregistered scheme fails SILENTLY: the tap is delivered, resolves to nothing, and the app never opens. Register it on iOS via CFBundleURLTypes in Info.plist and on Android on your MainActivity:

[IntentFilter([Intent.ActionView],
    Categories = [Intent.CategoryDefault, Intent.CategoryBrowsable],
    DataScheme = "myapp")]
public class MainActivity : MauiAppCompatActivity { ... }

Omitting DeepLink on the content is always safe: tapping then simply foregrounds the app (Android falls back to the launch intent; iOS opens the app by default).

Note

Android 16: an action tap leaves the expanded chip card on screen. Tapping the status-bar chip of a Live Update opens a floating card; tapping the card's body (the content DeepLink) opens your app and closes the card, but tapping an action button opens your app behind a card that stays up until it is dismissed or times out. That is SystemUI's own behaviour — a notification cannot close that surface, and ACTION_CLOSE_SYSTEM_DIALOGS has been blocked for apps since Android 12. If a single tap target matters more than buttons for your feature, put it on the content DeepLink.

Where to next

• Timers — the OS ticks, you don't: count-downs, count-ups, pausing, and what happens at zero.
• Use cases — delivery with steps, appointments that run over, workouts, downloads, live scores.
