Scaffold Structure & Tab Bar

The Scaffold describes your whole application as a tree:

Scaffold
 ├─ ScaffoldArea / ScaffoldTabBar     (areas — a tab bar is an area whose roots show as tabs)
 │   ├─ ScaffoldRoot                  (one root = one navigation stack)
 │   └─ ScaffoldRoot
 └─ ScaffoldRoot                      (a bare root can sit directly in the scaffold)

Roots

A ScaffoldRoot binds a root page type to an independent navigation stack:

<nalu:ScaffoldRoot Title="Today"
                   PageType="{x:Type pages:TodayPage}" />
Property Purpose
PageType The root page (must be registered in Nalu navigation).
Title Shown by the default tab bar / flyout menu items.
Icon / SelectedIcon Tab imagery; CurrentIcon (read-only) resolves per selection state.
IsVisible Hides the root from chrome (tab bar / flyout) without removing its stack.
IsSelected (read-only) Whether this root is the current one.
SelectCommand Bindable command performing the engine-routed selection — the building block for custom tab bars and menus.

Selecting the already-active root pops its stack to the root page (the familiar "tap the active tab to go home" behavior). Selecting another root preserves the outgoing stack — state (scroll positions, entries, view models) survives tab switches and is restored when you come back.

Scaffold.CurrentArea and ScaffoldArea.CurrentRoot are read-only bindables reflecting the engine-owned selection.

The tab bar

ScaffoldTabBar is an area whose roots render in the bottom tab bar. The default bar is a centered pill with icon+label items and automatic overflow: when items don't fit at the configured item width, the bar shows a "More" item opening a wrap-grid panel with the remaining roots (reusing the same item template). Overflowed items leave the bar entirely — hidden, not merely moved out of sight — so a screen reader announces the tabs that are actually on the bar and nothing else.

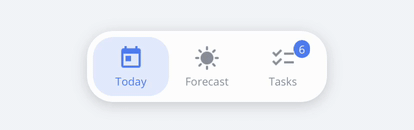

The default tab bar pill switching between roots

The default bar is styled with plain MAUI implicit styles (ScaffoldTabBarView, ScaffoldTabBarItemView, ScaffoldTabBarOverflowView are public types) — colors, pill background, spacing and fonts are all standard setters. Notable knobs on ScaffoldTabBarView: ItemWidth, OverflowIcon/OverflowTitle ("More"), BarBackground, BarCornerRadius, BarMargin, BarPadding, BarShadow — and the ScaffoldTabBarView.BadgeText attached property for per-root badges (set it on the ScaffoldRoot).

Replacing the bar entirely

Set ScaffoldTabBar.TabBarView to any MAUI view:

<nalu:ScaffoldTabBar>
    <nalu:ScaffoldTabBar.TabBarView>
        <local:MyTabBar />
    </nalu:ScaffoldTabBar.TabBarView>
    ...roots...
</nalu:ScaffoldTabBar>

Inside a custom bar, bind the area's Roots and use each root's Title, CurrentIcon, IsSelected and SelectCommand — selection stays engine-routed (guards and lifecycle fire).

The bar view owns its bottom safe-area behavior: the strip is sized to the bar's measured height and the bar extends into the bottom inset. Consume the inset on a CHILD of your bar with SafeAreaEdges (e.g. None,None,None,Container on the element that should clear the system bar) — never on the bar's root, whose size change would not propagate on iOS. A full-bleed background can reach the very bottom edge while its content stays clear.

Per-page tab bar visibility

<ContentPage nalu:Scaffold.TabBarVisibility="Hidden"> <!-- Auto | Visible | Hidden -->

Visible is the default — set Auto per page to show the bar on root pages and hide it on pushed pages. Visibility changes animate (slide), concurrently with the page transition.

Initial selection

Set Scaffold.InitialRootPageType to boot on a specific root; the default is the first root of the first area (IsVisible is not considered).

Runtime structure changes & XAML hot reload

Areas and Roots are observable and may be mutated at runtime: added roots appear in the chrome and are navigable; removing the current root automatically navigates to a fallback root before the removal completes. XAML hot reload is supported end to end — re-inflating the scaffold adopts the existing navigation stacks by segment, so page state survives a reload; TabBarView swaps apply live.

Non-tab areas

A plain ScaffoldArea groups roots without tab chrome — useful with a flyout menu as the switcher, or for roots reachable only programmatically.
