Layouts

Cross-platform layouts for MAUI applications to simplify dealing with templates and BindinginContext
in XAML.
Can be added to your project using .UseNaluLayouts()
on your app builder.
ViewBox
ViewBox
is a lightweight replacement for ContentView
class which is still based on the legacy Xamarin Compatibility.Layout
.
You can simply use ViewBox
as base class of your custom views instead of using ContentView
.
This class also provides a ContentBindingContext
property that allows you to bind the content to a property of the ViewBox
's binding context.
This helps to fulfill interface segregation principle.
On top of that, ViewBox
offers the possibility to clip the content to the bounds of the view through IsClippedToBounds
property.
<nalu:ViewBox ContentBindingContext="{Binding SelectedAnimal}"
IsVisible="{Binding IsSelected}">
<views:AnimalView x:DataType="models:Animal" />
</nalu:ViewBox>
TemplateBox
Similarly to ViewBox
this component holds a view based on DataTemplate
or DataTemplateSelector
.
<nalu:TemplateBox ContentTemplate="{StaticResource AnimalTemplate}" ContentBindingContext="{Binding CurrentAnimal}" />
<nalu:TemplateBox ContentTemplate="{StaticResource AnimalTemplateSelector}" ContentBindingContext="{Binding CurrentAnimal}" />
You can also project the content into the template (like you usually do with ContentPresenter).
The following example will display Projected => I'm here!
.
<nalu:TemplateBox>
<nalu:TemplateBox.ContentTemplate>
<DataTemplate>
<HorizontalStackLayout>
<Label Text="Projected => " />
<nalu:TemplateContentPresenter />
</HorizontalStackLayout>
</DataTemplate>
</nalu:TemplateBox.ContentTemplate>
<Label Text="I'm here!" />
</nalu:TemplateBox>
ToggleTemplate
Usually to switch between views we use IsVisible
property, but this is not always the best solution.
Using IsVisible
still creates the view in the visual tree applying all the bindings (performance impact).
ToggleTemplate
is a TemplateBox
that generates a content view based on a boolean value and a corresponding DataTemplate
(or even DataTemplateSelector
).
<nalu:ToggleTemplate Value="{Binding HasPermission}"
WhenTrue="{StaticResource AdminFormTemplate}"
WhenFalse="{StaticResource PermissionRequestTemplate}" />
This can also be used with one single expensive template:
<nalu:ToggleTemplate Value="{Binding ShowExpensiveTemplate}"
WhenTrue="{StaticResource ExpensiveTemplate}" />
ExpanderViewBox
ExpanderViewBox
is a custom view that fully displays or collapses its content by animating the size transition.
You can use +Infinity
collapse size to enable size-change animations.
This component is also useful for scenarios where you want to show or hide additional information dynamically or if you want to build an accordion control.
Here's an example of how we can use it to build a section that can be expanded or collapsed through a button only when the content exceeds the CollapsedHeight
.
private void ToggleExpended(object? sender, EventArgs e)
{
TheExpander.IsExpanded = !TheExpander.IsExpanded;
}
<VerticalStackLayout>
<!-- This button is only visible when the expander's content is bigger than the collapsed size. -->
<Button Text="Toggle expanded"
Clicked="ToggleExpended"
IsVisible="{Binding Path=CanCollapse,
Source={x:Reference TheExpander},
x:DataType=nalu:ExpanderViewBox}"/>
<nalu:ExpanderViewBox x:Name="TheExpander"
BackgroundColor="Coral"
CollapsedHeight="200">
<VerticalStackLayout VerticalOptions="Start">
<Label Text="List of my friends" />
<!--
The height of this stack layout depends on the number of friends,
so the height will change at runtime and may or may not exceed the collapsed height.
-->
<VerticalStackLayout BindableLayout.ItemsSource="{Binding Friends}"
BindableLayout.ItemTemplate="{StaticResource FriendTemplate}" />
</VerticalStackLayout>
</nalu:ExpanderViewBox>
</VerticalStackLayout>
You can even use ExpanderViewBox
as a CollectionView
's ItemTemplate
to animate the size change of each item.
private void ScrollToMe(object? sender, EventArgs e)
{
TheCollectionView.ScrollTo((sender as BindableObject)?.BindingContext);
}
<CollectionView ItemsSource="{Binding Items}"
x:Name="TheCollectionView">
<CollectionView.ItemTemplate>
<DataTemplate x:DataType="pageModels:MyItem">
<nalu:ViewBox Padding="16,8">
<Border StrokeShape="RoundRectangle 12"
BackgroundColor="Coral">
<VerticalStackLayout>
<nalu:ExpanderViewBox CollapsedHeight="126"
IsExpanded="{Binding IsExpanded}">
<VerticalStackLayout Padding="16,8">
<Label Text="{Binding Name}" FontSize="Large"/>
<Label Text="{Binding Description}"/>
</VerticalStackLayout>
</nalu:ExpanderViewBox>
<Button Text="Toggle"
BackgroundColor="Coral"
TextColor="Black"
Clicked="ScrollToMe"
Command="{Binding ToggleCommand}"/>
</VerticalStackLayout>
</Border>
</nalu:ViewBox>
</DataTemplate>
</CollectionView.ItemTemplate>
</CollectionView>
Popups
Nalu.Maui provides a flexible and customizable way to implement popups in your MAUI applications.
Popups are non other than ContentPage
s with transparent background and a few key properties.
Nalu offers a built-in PopupPageBase
class, which creates a modal page with a scrim (background overlay) and a styled container for your popup content.
A CloseOnScrimTapped
property is available to control whether the popup should close when the scrim is tapped: you can bind it to a boolean property in your view model or set it directly in XAML.
Styling the popups
The base style for popups must be defined in your Styles.xaml
file, allowing you to customize the appearance of all popups in your application.
<Style TargetType="nalu:PopupScrim">
<Setter Property="BackgroundColor" Value="{AppThemeBinding Light='#20000000', Dark='#20FFFFFF'}" />
</Style>
<Style TargetType="nalu:PopupContainer">
<Setter Property="Background" Value="{AppThemeBinding Light={StaticResource White}, Dark={StaticResource OffBlack}}" />
<Setter Property="Margin" Value="16" />
<Setter Property="StrokeShape" Value="RoundRectangle 24" />
<Setter Property="StrokeThickness" Value="0" />
<Setter Property="VerticalOptions" Value="Center" />
<Setter Property="HorizontalOptions" Value="Center" />
</Style>
Creating a Popup
To create a popup, inherit from PopupPageBase
and set your content via the PopupContent
property (in XAML or code). You can style the popup using the provided PopupContainer
and PopupScrim
types.
<?xml version="1.0" encoding="utf-8"?>
<nlayouts:PopupPageBase xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
xmlns:popupModels="clr-namespace:MyNamespace.PopupModels"
xmlns:nlayouts="https://nalu-development.github.com/nalu/layouts"
x:Class="MyNamespace.YesNoPopupPage"
x:DataType="popupModels:YesNoPopupPageModel"
CloseOnScrimTapped="True">
<VerticalStackLayout Padding="16">
<Label Text="Do you want to proceed?"
FontSize="24"
HorizontalOptions="Center" />
<HorizontalStackLayout HorizontalOptions="End">
<Button Text="Cancel"
Command="{Binding Path=NoCommand}"
Margin="0,0,16,0" />
<Button Text="OK"
Command="{Binding Path=YesCommand}" />
</HorizontalStackLayout>
</VerticalStackLayout>
</nlayouts:PopupPageBase>
Using Popups with Nalu.Maui.Navigation
First of all the popup page and page model must follow the same naming convention as other pages and page models in your application. If you want to use a different one, you have to register them manually in the Nalu navigation builder.
Define a handy base class for your popup models: in the following example we use the community toolkit MVVM ObservableObject
as base class, but you can use any other base class that fits your needs.
using CommunityToolkit.Mvvm.ComponentModel;
namespace Nalu.Maui.Weather.PopupModels;
public abstract class PopupModelBase<TIntent, TResult>(INavigationService navigationService) : ObservableObject, IEnteringAware<TIntent>
where TIntent : AwaitableIntent<TResult>
{
protected TIntent PopupIntent { get; private set; } = null!;
public virtual ValueTask OnEnteringAsync(TIntent intent)
{
PopupIntent = intent;
return ValueTask.CompletedTask;
}
protected async Task CloseAsync()
{
await navigationService.GoToAsync(Navigation.Relative().Pop());
}
protected Task CloseAsync(TResult result)
{
PopupIntent.SetResult(result);
return CloseAsync();
}
protected Task CloseFaultyAsync(Exception exception)
{
PopupIntent.SetException(exception);
return CloseAsync();
}
}
Now define our awaitable intent for the popup. This intent will be used to pass parameters to the popup and to await the result.
In the following example we don't have any specific parameters to pass, but you can extend the intent class to include any necessary properties.
public class YesNoIntent : AwaitableIntent<bool?>;
And use it in the corresponding popup model:
public partial class YesNoPopupModel(INavigationService navigationService) : PopupModelBase<DurationEditIntent, TimeSpan?>(navigationService)
{
[RelayCommand]
public async Task YesAsync() => await CloseAsync(true);
[RelayCommand]
public async Task NoAsync() => await CloseAsync(false);
}
Now we can leverage the Nalu's navigation service to show the popup and await the result.
var response = await navigationService.ResolveIntentAsync<YesNoPopupModel, bool?>(new YesNoIntent());
If you just want to await for the popup to close without caring about the result, you can use the non-generic AwaitableIntent
instead.
Easy right? You can now use this pattern to create any kind of popup in your application.

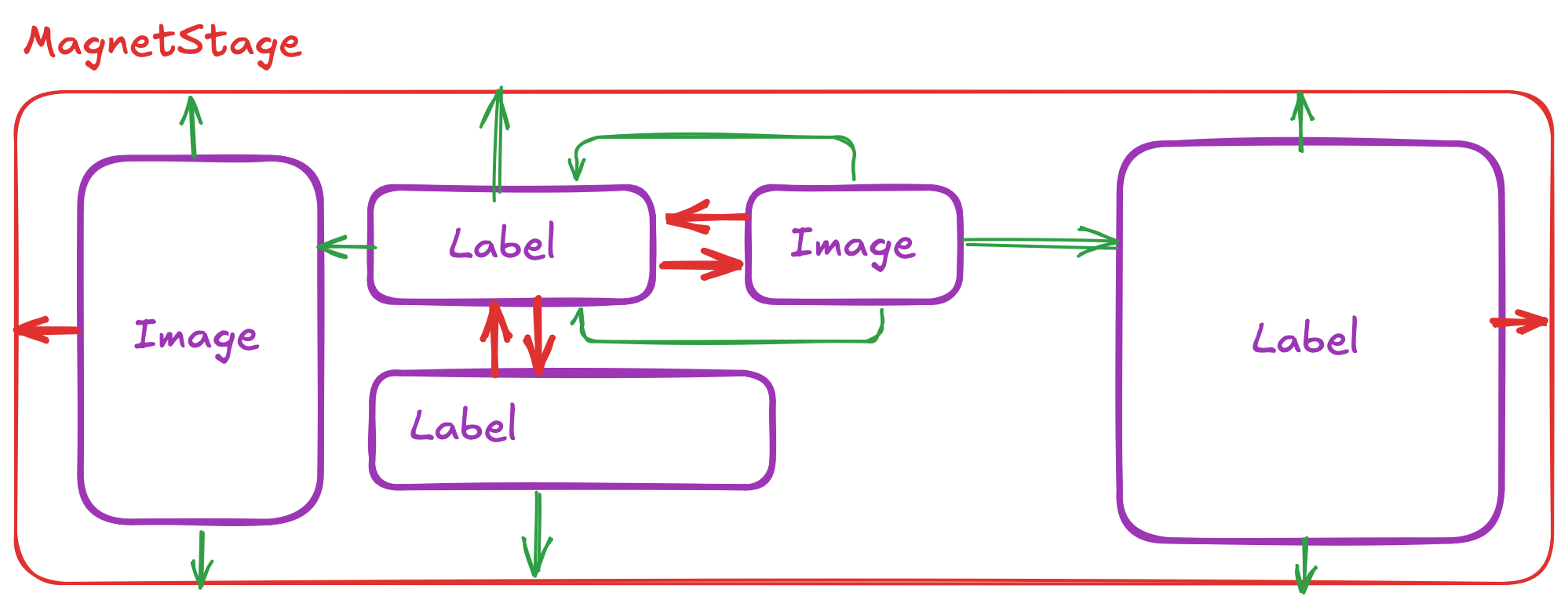

Magnet
Magnet
is a powerful constraint-based layout that allows you to create complex layouts with ease by defining constraints.
The documentation is not yet available here, but you can look at this presentation.
Keep in mind this layout is in alpha/preview state so its API may be subject to change.
Here's a performance comparison between GridLayout
and MagnetLayout
considering two scenarios:
- Dynamic measure: All the views keep chaining their size on each measure pass (rare case)
- Constant measure: The views always return the same size (very common)
for (var i = 0; i < _iterations; i++)
{
var result = _layoutManager.Measure(500, 500);
_layoutManager.ArrangeChildren(new Rect(Point.Zero, result));
}
Method | Mean | Error | StdDev | Gen0 | Allocated |
---|---|---|---|---|---|
GridLayoutPerf | 2.332 ms | 0.0206 ms | 0.0183 ms | 222.6563 | 1.78 MB |
MagnetLayoutPerf | 6.747 ms | 0.0444 ms | 0.0393 ms | 273.4375 | 2.21 MB |
GridLayoutConstantMeasurePerf | 1.388 ms | 0.0221 ms | 0.0207 ms | 166.0156 | 1.33 MB |
MagnetLayoutConstantMeasurePerf | 2.756 ms | 0.0211 ms | 0.0176 ms | 218.7500 | 1.75 MB |
As we can see Magnet
is about 2 times slower than Grid
but it provides a lot of flexibility and power.
So it's up to you to decide whether to use Magnet
or the standard MAUI layouts.
On a common page with a few views, the performance impact is negligible while the flexibility gain is huge in comparison.
Inside a CollectionView
template is probably better to use MAUI layouts, but that still needs to be verified with real data
considering that you may be forced to use nested layouts to achieve the same result and that also comes with a non-negligible performance cost.
Important:
- in a
CollectionView
template, make sure yourStage
property references aMagnetStage
defined outside the template (akaResources
) - at the moment it is not supported to change the
MagnetStage
content at runtime
