Magnet by example

Twelve small, real-world layouts that build the Magnet mental model one concept at a time — the same way Android developers learn ConstraintLayout. Every screenshot is rendered by the actual library (the gallery lives in the TestApp: Samples/Nalu.Maui.TestApp/Tests/MagnetExamplesPage.xaml, page "Magnet Examples"); the snippets keep every layout-relevant attribute and omit only colors and fonts.

The mental model in one paragraph: every view is positioned by anchoring its four poles (Left/Top/Right/Bottom) to the poles of siblings, virtual nodes or the parent; a view anchored on one side of an axis sits there at its own size, a view anchored on both sides floats between them (HorizontalBias/VerticalBias, default centered) or fills the span (WidthSizing="*"). Everything else — barriers, guidelines, chains — is a virtual node you anchor to, exactly like a view.

1 · List row — anchors, margins, alignment

List row

The "hello world": an avatar pinned to the start, a title after it, a subtitle below the title, a time pinned to the end. Note how the title spans between the avatar and the time (After + Before) with HorizontalBias="0" to start-align it in that span.

<nalu:Magnet>
  <Border nalu:Magnet.MagnetId="avatar"
          nalu:Magnet.WidthSizing="48" nalu:Magnet.HeightSizing="48"
          nalu:Magnet.LeftTo="parent.Left" nalu:Magnet.TopTo="parent.Top" />
  <Label  nalu:Magnet.MagnetId="name" Text="Ada Lovelace"
          nalu:Magnet.After="avatar,12" nalu:Magnet.Before="time,8"
          nalu:Magnet.AlignTop="avatar" nalu:Magnet.HorizontalBias="0" />
  <Label  nalu:Magnet.MagnetId="message" Text="Working on the analytical engine…"
          nalu:Magnet.AlignLeft="name" nalu:Magnet.Below="name,2" />
  <Label  nalu:Magnet.MagnetId="time" Text="09:41"
          nalu:Magnet.RightTo="parent.Right" nalu:Magnet.AlignTop="name" />
</nalu:Magnet>
  • After="avatar,12" is shorthand for LeftTo="avatar.Right,12"; AlignTop="avatar" for TopTo="avatar.Top".
  • This whole row is one flat layout — the Grid equivalent needs nested columns and rows.

2 · Login screen — FillWidth and horizontal centering

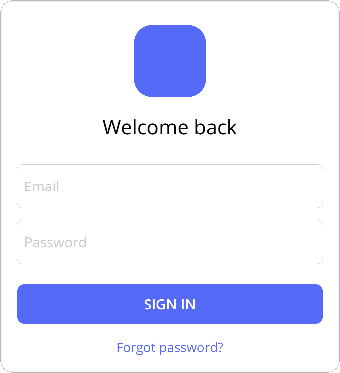

Login screen

A vertical flow where fields fill the width and the logo/labels are centered. FillWidth="parent" anchors both sides and sets WidthSizing="*"; HorizontallyWithin="parent" anchors both sides but keeps the measured width, so the view floats centered.

<nalu:Magnet>
  <Border nalu:Magnet.MagnetId="logo"
          nalu:Magnet.WidthSizing="72" nalu:Magnet.HeightSizing="72"
          nalu:Magnet.HorizontallyWithin="parent" nalu:Magnet.TopTo="parent.Top,8" />
  <Label  nalu:Magnet.MagnetId="welcome" Text="Welcome back"
          nalu:Magnet.HorizontallyWithin="parent" nalu:Magnet.Below="logo,16" />
  <Entry  nalu:Magnet.MagnetId="email" Placeholder="Email"
          nalu:Magnet.FillWidth="parent" nalu:Magnet.Below="welcome,24" />
  <Entry  nalu:Magnet.MagnetId="password" Placeholder="Password"
          nalu:Magnet.FillWidth="parent" nalu:Magnet.Below="email,12" />
  <Button nalu:Magnet.MagnetId="signIn" Text="Sign in"
          nalu:Magnet.FillWidth="parent" nalu:Magnet.Below="password,20" />
  <Label  nalu:Magnet.MagnetId="forgot" Text="Forgot password?"
          nalu:Magnet.HorizontallyWithin="parent" nalu:Magnet.Below="signIn,14" />
</nalu:Magnet>
  • FillWidth = both anchors + * sizing; HorizontallyWithin = both anchors + measured sizing (centered by bias).
  • Each Below chains the vertical flow without any stack layout.

3 · Header bar — centering on the parent, not between siblings

Header bar

The classic toolbar mistake is centering the title between the buttons: with asymmetric buttons the title drifts. Anchoring the title to the parent keeps it optically centered regardless of what surrounds it.

<nalu:Magnet HeightRequest="48">
  <Button nalu:Magnet.MagnetId="back" Text="←"
          nalu:Magnet.WidthSizing="44" nalu:Magnet.HeightSizing="40"
          nalu:Magnet.LeftTo="parent.Left" nalu:Magnet.VerticallyWithin="parent" />
  <Label  nalu:Magnet.MagnetId="pageTitle" Text="Settings"
          nalu:Magnet.HorizontallyWithin="parent" nalu:Magnet.VerticallyWithin="parent" />
  <Button nalu:Magnet.MagnetId="menu" Text="⋯"
          nalu:Magnet.WidthSizing="44" nalu:Magnet.HeightSizing="40"
          nalu:Magnet.RightTo="parent.Right" nalu:Magnet.VerticallyWithin="parent" />
</nalu:Magnet>
  • Views may overlap in a Magnet: the title's constraints are independent of the buttons'. If overlap must be avoided, anchor the title between the buttons instead — that is a choice, not a limitation.

4 · Form — a barrier aligns the fields after the longest label

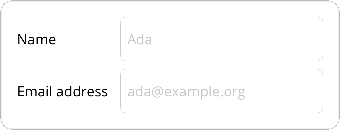

Form with barrier

Labels have different widths, but every field should start at the same x — after the longest label. That line is a MagnetBarrier: a virtual vertical line at the outermost Right pole of its member nodes, which you anchor to like any other node.

<nalu:Magnet>
  <nalu:Magnet.Definition>
    <nalu:MagnetDefinition>
      <nalu:MagnetBarrier MagnetId="labelsEnd" Direction="Right" Margin="12" Nodes="nameLabel,emailLabel" />
    </nalu:MagnetDefinition>
  </nalu:Magnet.Definition>
  <Label nalu:Magnet.MagnetId="nameLabel" Text="Name"
         nalu:Magnet.LeftTo="parent.Left" nalu:Magnet.VerticallyWithin="nameEntry" />
  <Label nalu:Magnet.MagnetId="emailLabel" Text="Email address"
         nalu:Magnet.LeftTo="parent.Left" nalu:Magnet.VerticallyWithin="emailEntry" />
  <Entry nalu:Magnet.MagnetId="nameEntry" nalu:Magnet.WidthSizing="*"
         nalu:Magnet.LeftTo="labelsEnd.Right" nalu:Magnet.RightTo="parent.Right"
         nalu:Magnet.TopTo="parent.Top" />
  <Entry nalu:Magnet.MagnetId="emailEntry" nalu:Magnet.WidthSizing="*"
         nalu:Magnet.LeftTo="labelsEnd.Right" nalu:Magnet.RightTo="parent.Right"
         nalu:Magnet.Below="nameEntry,8" />
</nalu:Magnet>
  • The barrier moves when the labels change (localization!) and ignores collapsed members.
  • X and Y are solved independently: the labels take their y from the entries (VerticallyWithin) while the entries take their x from the barrier — no cycle.

5 · Chain styles — distributing a group

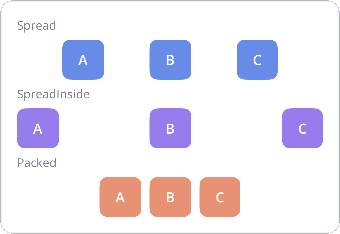

Chain styles

A MagnetChain distributes a group of views along one axis. Spread puts equal gaps everywhere, SpreadInside pins the first and last to the edges, Packed glues the group together (positioned by the head's bias).

<nalu:Magnet>
  <nalu:Magnet.Definition>
    <nalu:MagnetDefinition>
      <nalu:MagnetChain MagnetId="row" Style="Spread" Nodes="a,b,c" />
    </nalu:MagnetDefinition>
  </nalu:Magnet.Definition>
  <Button nalu:Magnet.MagnetId="a" Text="A" nalu:Magnet.TopTo="parent.Top" />
  <Button nalu:Magnet.MagnetId="b" Text="B" nalu:Magnet.TopTo="parent.Top" />
  <Button nalu:Magnet.MagnetId="c" Text="C" nalu:Magnet.TopTo="parent.Top" />
</nalu:Magnet>
  • Members need no horizontal anchors: the chain runs from the first member's start anchor (default parent.Left) to the last member's end anchor (default parent.Right).
  • In a Packed chain, anchors to the adjacent member (After="a,8") add gaps inside the group.
  • You rarely need a chain for a single centered view — chains are for distributing a group as a whole.

6 · Weighted columns — sharing space 2:1:1

Weighted columns

Members sized * inside a chain share the remaining space according to Weights — the Magnet equivalent of Grid's 2*,*,* columns, but relocatable anywhere in the layout.

<nalu:Magnet>
  <nalu:Magnet.Definition>
    <nalu:MagnetDefinition>
      <nalu:MagnetChain MagnetId="bar" Nodes="w1,w2,w3" Weights="2,1,1" Gap="4" />
    </nalu:MagnetDefinition>
  </nalu:Magnet.Definition>
  <Border nalu:Magnet.MagnetId="w1" nalu:Magnet.WidthSizing="*" nalu:Magnet.HeightSizing="28" nalu:Magnet.TopTo="parent.Top" />
  <Border nalu:Magnet.MagnetId="w2" nalu:Magnet.WidthSizing="*" nalu:Magnet.HeightSizing="28" nalu:Magnet.TopTo="parent.Top" />
  <Border nalu:Magnet.MagnetId="w3" nalu:Magnet.WidthSizing="*" nalu:Magnet.HeightSizing="28" nalu:Magnet.TopTo="parent.Top" />
</nalu:Magnet>
  • Weights is positional (aligned with Nodes); members without a weight default to 1.
  • Gap="4" declares the uniform gap once on the chain, between consecutive visible members; collapsed members give their share (and their gap) back to the others. Per-pair After="…,4" anchors override it where declared.

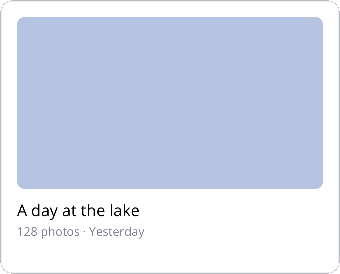

7 · Media card — a 16:9 image via Ratio sizing

Media card

The hero image fills the width and derives its height from it: HeightSizing = 0.5625 × width (9/16). No measure pass, no code-behind, and it adapts when the card resizes.

<nalu:Magnet HeightRequest="240">
  <Border nalu:Magnet.MagnetId="hero"
          nalu:Magnet.FillWidth="parent" nalu:Magnet.TopTo="parent.Top"
          nalu:Magnet.HeightSizing="{nalu:MagnetSizing 0.5625, Unit=Ratio}" />
  <Label  nalu:Magnet.MagnetId="cardTitle" Text="A day at the lake"
          nalu:Magnet.AlignLeft="hero" nalu:Magnet.Below="hero,10" />
  <Label  nalu:Magnet.MagnetId="cardMeta" Text="128 photos · Yesterday"
          nalu:Magnet.AlignLeft="hero" nalu:Magnet.Below="cardTitle,2" />
</nalu:Magnet>
  • Unit=Ratio multiplies the other axis size: 0.5625 on the height means height = width × 0.5625.
  • A Ratio driven by a * width wants a slot whose size is known (a filling slot, a fixed request like here, or a Grid star cell): in an auto-sized slot the measure pass hugs the content width, so the ratio would be computed against a narrower width than the one the parent finally assigns.

8 · Onboarding — a percent guideline splits the stage

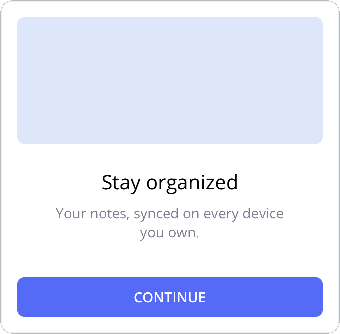

Guideline split

A MagnetGuideline is a virtual line at stageSize × Percent + Position. Here the illustration takes the top 45% regardless of the device height — the "proportional split" that otherwise needs a Grid with star rows.

<nalu:Magnet HeightRequest="300">
  <nalu:Magnet.Definition>
    <nalu:MagnetDefinition>
      <nalu:MagnetGuideline MagnetId="split" Orientation="Horizontal" Percent="0.45" />
    </nalu:MagnetDefinition>
  </nalu:Magnet.Definition>
  <Border nalu:Magnet.MagnetId="art"
          nalu:Magnet.FillWidth="parent" nalu:Magnet.HeightSizing="*"
          nalu:Magnet.TopTo="parent.Top" nalu:Magnet.BottomTo="split.Top,8" />
  <Label  nalu:Magnet.MagnetId="obTitle" Text="Stay organized"
          nalu:Magnet.HorizontallyWithin="parent" nalu:Magnet.TopTo="split.Bottom,16" />
  <Label  nalu:Magnet.MagnetId="obBody" Text="Your notes, synced on every device you own."
          nalu:Magnet.FillWidth="parent,24" nalu:Magnet.Below="obTitle,8" />
  <Button nalu:Magnet.MagnetId="obNext" Text="Continue"
          nalu:Magnet.FillWidth="parent" nalu:Magnet.BottomTo="parent.Bottom" />
</nalu:Magnet>
  • Percent and Position are animatable values: moving a guideline relayouts without recompiling.
  • The button is anchored to the bottom while the text flows from the guideline — two independent vertical flows in one layout.

9 · Visibility — collapsing a view and gone margins

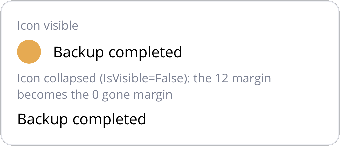

Visibility and gone margins

IsVisible="False" collapses a view: its size becomes 0 and anchors targeting it switch to their gone margin (the third value in After="icon,12,0"). The label glued 12dp after the icon snaps to the parent edge when the icon disappears — no conditional layout code.

<nalu:Magnet>
  <Border nalu:Magnet.MagnetId="icon"
          nalu:Magnet.WidthSizing="24" nalu:Magnet.HeightSizing="24"
          nalu:Magnet.LeftTo="parent.Left" nalu:Magnet.TopTo="parent.Top" />
  <Label  nalu:Magnet.MagnetId="text" Text="Backup completed"
          nalu:Magnet.After="icon,12,0" nalu:Magnet.VerticallyWithin="icon" />
</nalu:Magnet>
  • Anchor syntax: "target,margin,gone:X" (or the shortcut's third value) — the margin used when the target collapses.
  • Toggling visibility never recompiles the layout; chains and barriers skip collapsed members automatically.

10 · Packed chain + measured member — the FlexLayout replacement

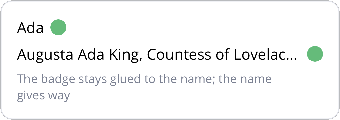

Packed chain with measured member

A name with a badge glued to its right: with a short name the badge sits right after it; when the name grows it ellipsizes and the badge stays visible at the edge. Elsewhere this needs a FlexLayout; here it is a packed chain whose measured member shrinks to leave room for its siblings.

<nalu:Magnet>
  <nalu:Magnet.Definition>
    <nalu:MagnetDefinition>
      <nalu:MagnetChain MagnetId="row" Style="Packed" Nodes="name,badge" />
    </nalu:MagnetDefinition>
  </nalu:Magnet.Definition>
  <Label  nalu:Magnet.MagnetId="name" Text="Ada" LineBreakMode="TailTruncation"
          nalu:Magnet.LeftTo="parent.Left" nalu:Magnet.TopTo="parent.Top" nalu:Magnet.HorizontalBias="0" />
  <Border nalu:Magnet.MagnetId="badge"
          nalu:Magnet.WidthSizing="16" nalu:Magnet.HeightSizing="16"
          nalu:Magnet.After="name,6" nalu:Magnet.RightTo="parent.Right"
          nalu:Magnet.VerticallyWithin="name" />
</nalu:Magnet>
  • The name keeps its default Measured sizing: in a chain, a measured member is measured with the room left by the other members, so it wraps/truncates exactly when it must.
  • HorizontalBias="0" on the head packs the group to the start.

11 · Vertical centering in a horizontal chain — the guideline idiom

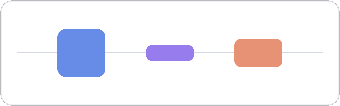

Chain vertical centering

A horizontal chain owns only the X axis: each member's Y is free. To center members of different heights on each other, give them all VerticallyWithin the same reference. The most flexible reference is a horizontal guideline: it spans a zero-height segment, so the default bias 0.5 puts every member's center exactly on the line (the thin line in the screenshot is a real 1dp view, itself centered on the guideline).

<nalu:Magnet HeightRequest="72">
  <nalu:Magnet.Definition>
    <nalu:MagnetDefinition>
      <nalu:MagnetGuideline MagnetId="midline" Orientation="Horizontal" Percent="0.5" />
      <nalu:MagnetChain MagnetId="row" Style="Spread" Nodes="tall,short,mid" />
    </nalu:MagnetDefinition>
  </nalu:Magnet.Definition>
  <Border nalu:Magnet.MagnetId="tall"  nalu:Magnet.WidthSizing="48" nalu:Magnet.HeightSizing="48"
          nalu:Magnet.VerticallyWithin="midline" />
  <Border nalu:Magnet.MagnetId="short" nalu:Magnet.WidthSizing="48" nalu:Magnet.HeightSizing="16"
          nalu:Magnet.VerticallyWithin="midline" />
  <Border nalu:Magnet.MagnetId="mid"   nalu:Magnet.WidthSizing="48" nalu:Magnet.HeightSizing="28"
          nalu:Magnet.VerticallyWithin="midline" />
</nalu:Magnet>
  • The two simpler variants of the same idiom: VerticallyWithin="parent" centers each member in the row, and VerticallyWithin="tall" centers the others on a reference member (works even when the reference is shorter — negative slack still centers).
  • There is no CenterY pole — like ConstraintLayout, centering is "both anchors + bias 0.5", and the zero-height guideline turns that into an exact center line.

12 · Chain margins under collapse — Anchors vs Separators

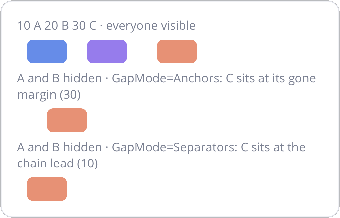

Gap modes under collapse

The same 10 A 20 B 30 C packed chain, three times: everyone visible, then A and B hidden with the two GapModes. Anchors (the default) follows the ConstraintLayout rules — the collapsed members drop their own margins and C lands at its gone margin (30). Separators treats margins as structure — the leading 10 belongs to the chain and survives, so the first visible member sits at the chain lead, whichever member it is.

<nalu:MagnetChain MagnetId="row" Style="Packed" GapMode="Separators" Nodes="a,b,c" />
<!-- a: LeftTo="parent.Left,10" · b: After="a,20" · c: After="b,30" -->
  • In Separators mode the inner margins apply only between visible members (gone margins are not involved), and the last member's end margin survives the tail collapsing too.
  • For a uniform gap, skip the per-pair anchors entirely: Gap="8" on the chain has separator semantics in both modes and is animatable.
  • This is the StackLayout padding+spacing model, per pair — a semantics ConstraintLayout cannot express statically.

Regenerating the screenshots

The gallery page is driven by a DevFlow UI test: launch the TestApp on the iOS simulator, then

DOCS_SHOTS_DIR=$(pwd)/conceptual_docs/assets/images/magnet dotnet test UITests/UITests.DevFlow -- --filter-class Nalu.Maui.UITests.Tests.MagnetExamplesShotsTests
